| Electrical Operating Table |
Model 1 - Works on electric hydraulic principle.
Length: 2000 ± 50mm
Width: 500 ± 20mm
Height of the platform: (550~850) ± 50mm
Backboard fold upward: ≥ 75°
Backboard fold downward: ≥ 20°
Forward: ≥ 20°
Backward: ≥ 15°
Mains Voltage: AC 220V ± 10% 50 Hz
Model-2 :Works on electric motor principle.
Length: 2000 ± 50mm
Width: 500 ± 20mm
Height of the platform: (700~900) ± 50mm
Horizontal and longitudinal movement: ≥ 400mm
Backboard fold upward: ≥ 50°
Forward: ≥ 25°
Backward: ≥ 25°
Mains Voltage: AC 220V 50 Hz |
| Hydraulic Operating Table |
Works on hydraulic pneumatic system
Length: 2000 ± 50mm
Width: 480 ± 20mm
Height of the platform: (700~950) ± 50mm
Backboard fold upward: ≥ 75°
Backboard fold downward: ≥ 15°
Forward: ≥ 20°
Backward: ≥ 15° |
| Multi-Functional Operation Table |
All actions controlled by both sides
Length: 2100 ± 50mm
Width: 480 ± 20mm
Height of the platform: (700~950) ± 50mm
Backboard fold upward: ≥ 75°
Backboard fold downward: ≥ 18°
Forward: ≥ 30°
Backward: ≥ 20° |
| Facility Operation Table |
Length: 1900 ± 50mm
Width: 600 ± 20mm
Height: 800 ± 20mm
Backboard fold upward: ≥ 50°
Backboard fold downward: ≥ 18° |
|
|
| Ceiling O.T. Lights |
Shadowless Operating Lamp
Illuminance(Lux): 80,000-150,000Lux
Color temperature: 4000±500K
Illuminance depth(mm): ≥700
Input power: 400 W
Available in Single dome also
Cold Light Operating Lamp- Model:1
llluminance: 3-reflector:40,00-80,000Lux & 6-reflector:60,00-120,000Lux
Color temperature:4000±500K
Power supply voltage: AC 220V/50-60Hz
Input power: 660VA
Bulb: Tungesten halogen bulb
Cold Light Operating Lamp Model:2
llluminance:12 reflector ≥120,00Lux
Color temperature:4000±500K
Power supply voltage: AC 220V/50-60Hz
Input power: 350VA
Bulb: Cold light source |
| Wall Mounted O.T. Lights |
Illuminance: 40,000 ~ 80,000 Lux
Color temperature:4000±500k
Power supply voltage:&220V/50-60Hz
Bulb:Tungsten halogen bulb |
| Mobile O.T. Lights |
Color temperature:4000±500
Illuminance depth(mm):≥700
Power supply voltage:~220V/50-60Hz
Input power(W): 200
Bulb: Tungesten halogen bulb
Emergency Cold Light Operating lamp Model-1
llluminance:≥60,000Lux
Color temperature:4000±500K
Power supply voltage: AC 220V/50-60Hz
Input power: 150VA
Bulb: Cold light source or tungesten halogen bulb
Emergency Cold Light Operating lamp Model-2
llluminance:40,00-80,000Lux
Color temperature:4000±500K
Power supply voltage: AC 220V/50-60Hz
Input power: 200VA
Bulb: Tungesten halogen bulb
Cold Light Operating Lamp
llluminance:12000 ~ 25000Lux
Color temperature:3700±500K
Power supply voltage:~220V/50-60Hz
Bulb:Cold Light source / Tungsten halogen bulb |
| Examination light |
Emergency Shadowless Operating lamp
Illuminance(Lux):60,000-120,000Lux
Illuminance:
- 20W:20,000Lux 0.5m / 5000 Lux 1m
- 35W:25,000Lux 0.5m / 10000Lux 1m
- 50W:30,000Lux 0.5m / 20000Lux 1m
Color temperature: 4800±200k
Power supply:AC 110V/220V,50-60Hz |
|
|
| Mobile Suction Machine |
Housing: MS Powder coated cabinet with SS top.
Capacity: 0-700 mm Hg ± 10 regulable, flutter free vacuum control knob, 25 Ltrs / min.
Pump type: Single rotary vane pump
Jar: Wide mouthed 2 x 2 Ltrs. (Polycarbonate) |
| Portable Suction Unit |
Housing: Engineering moulded ABS plastic cabinet
Capacity: 0-575 mm Hg ± 10 at 25 ltrs / min.
Pump type: Oil-free diaphragm pump
Jar: Wide mouthed autoclavable 2 ltr. collection jar (Polycarbonate)
Power: 220 V AC, 50 / 60 Hz, 125 watts.
Housing: Engineering moulded ABS plastic cabinet
Capacity: 0-575 mm Hg ±10 regulable at 14 ltrs / min.
Pump type: Oil-free Piston Pump
Jar: One 1 ltr collection jar (Polycarbonate)
Power: 220 V, 50 / 60 Hz, Single phase |
| Manual operated Suction Umit |
Housing: Engineering plastic moulded parts
Capacity: Outright vacuum - 600 mm Hg ±10 with average per stroke volume of 200 ml.
Pump type: Efficient piston pump for creating vacuum instantly.
Jar: Autoclavable 1 X 1 ltr. jar (Polycarbonate) |
| AC/DC Suction Unit |
Housing: MS powder coated cabinet
Capacity: 0-575 mm Hg ±10 Vacuum 14 ltrs / min.
Pump type: Oil-free piston pump
Jar: Autoclavable 0.5 ltr. collection jar (Polycarbonate)
Power: 220 V AC and in-built maintenance-free 6 V, 4.5 Amp (2) rechargeable battery, 55 watts.
Battery Backup: 120 minutes on full charge
Housing: Engineering moulded ABS Plastic Cabinet
Capacity: 0-600 mm Hg ±10 Vacuum, 30 ltrs / min.
Pump Type: Oil-free diaphragm pump
Jars: Wide mouthed autoclavable 2 ltr. collection jar (Polycarbonate)
Power: 220 V AC and in-built maintenance -free 12 V, 7.5 Amp rechargeable battery.
Battery Backup:120 minutes on full charge
Housing: Engineering moulded ABS plastic cabinet
Capacity: 0-575 mm Hg ±10 regulable at 14 ltrs / min.
Pump Type: Oil-free Piston Pump
Jar: 1 ltr. collection jar (Polycarbonate)
Power: 220 V AC and in-built maintenance - free 12 V, 2.2 Amp rechargeable battery or ambulance / car socket (cable provided).
Battery Back up: 120 minutes on full charge.
Supplied in an attractive carry bag |
| Handheld Suction Unit |
Provide quick and effective suction for multiple emergency use.
Vacuum(max): 450 mm Hg
Disposable Container Volume: 200 ml
Operating environmental temperature: - 20 to + 50 °C
Storage Environmental Temperature: - 40 °C to + 60 °C |
|
|
| Pulse Oximeter |
14.4 cm (5.7") STN Blue LCD with backlit display
Trend SpO2 andPulse Rate for last 24 hours
Compact & Portable
Parameters Displayed
- Plethysmograph
- Signal Strength
- Numeric Value of SpO2 and Pulse Rate
Pitch Tone Variation for different Spo2 values
Built-in rechargeable battery |
| ECG (Electrocardigraphy) |
Single Channel ECG Recording
Automatic and Manual Recording Modes
Dual Power supply: Mains and Battery operation (Rechargeable)
Thermal printing on 50 mm paper
Compact design, Light weight & Portable
3 Channel ECG recording with 12 lead simultaneous acquisition with auto summary
Wide screen LCD display
Light weight design for portability - only 2.5 kg
Operates on powerline as well as battery (Rechargeable)
6 Channel ECG Recording with 12 lead simultaneous acquisition
3.5" STN LCD display
Built-in Li-ion rechargeable battery
Upto 50 ECG's in internal memory
Supports external archiving: USB Disk / SD Card / Flash disk
12 Channel acquisition with real-time ECG display and recording
5.7- inch High Resolution tiltable display
Stores up to 63 records in internal memory
PC Connectivity through USB
Supports thermal paper in A4 or A5 Z-fold and Roll form |

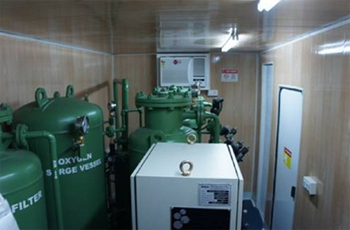

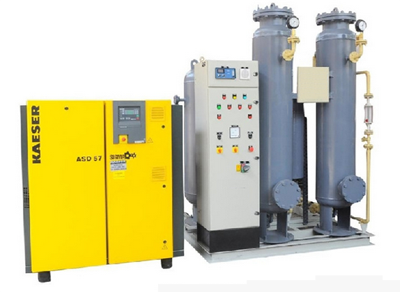

| Oxygen Concentrator |
Shorter setup and testing time
Pressure Swing Absorption Technology
Dual Audio alarm system
Portable, user-friendly, safe, quiet & reliable
Built-in hour meter
Front panel access to reset switch |
| Patient Monitor |
High Resolution 10.4" TFT Color Display
Standard Configuration of ECG, Resp, Spo2, NIBP, Temp
Drug Dose Calculation / HRV Analysis / OXY CRG
90 Days Trend
3-Lead / 5-Lead Monitoring
Display of 8 waveforms, including 4 ECG waveforms display, Customised Waveforms Display order |
| Fetal Dopplar |
Light Weight and Portable
Large LCD display with blue back light
Sensitivity: Monitors Foetus > 12 Weeks
Accurate FHR detection with clear sound
Built in loud speaker
2.5 Mhz water proof probe
|
| Infusion Volumetric Pump |
Large Blue LCD display
Infusion mode: Drip-rate and Volumetric
Double CPU for safety and reliable infusion
Unique anti-reverse function to avoid upstream
Pressure detection device with 8 sensitivity setting to prevent occlusion
IV setting: Up to 10 different setting for various brands
Auto save of last IV setting |
| Syringe pump |
LCD with Blue backlit display
Dual operation modes: Micro mode and continuous injection
Anti-reverse function to prevent upstream
Pressure release function for occlusion occurred
Compatible with all standard syringes
Audio and Visual Alarms |
| Ultrasound Scanner |
Digital Beam Forming Technology
Multi Frequency probes
Upto 24 cm depth of scanning
8 level TGC Control
Backlit key board
Measurement package for various applications
Cine Loop / Image Storage Facility |
|
|
| Defibrillator |
Less than 5 seconds to charge to 360J with battery
100 Charge /discharge of 360J with fully charged new battery
Event Recording
Thermal Printing
LCD for sharp & bright non fade display |
|
|
|
| Ventilator |
Open breathing system Internal turbine eliminates the need for air cylinders or external compressor Internal battery to bridge periods of power failure and to support mobility Nine rubies enable highly precise, endurable O2 dosage Three independent, invisible "bodyguards" always on duty to improve patient safety
Three backup twin sensors on duty for:
- FiO2
- airway pressure
- minute volume
Direct access to essential ventilation settings
Bright, high-resolution color screen for 'excellent visibility - even from a distance
|
|
|
| Instrument Sterilizer, Electric |
Fitted with tray lifting arrangement and Thermostat
Power Supply: 220V, 50 Hz.
Available in different sizes |
| Instrument Sterilizer, Non - Electric |
Fitted with tray lifting arrangement
Power Supply: 220V, 50 Hz.
Available in different sizes |
| Autoclave (Pressure Cooker Type) Electric |
Fitted with: Pressure Regulating Device (Black Weight) , Safety Valve (Red Weight) , Pressure Gauge and inner stand.
Power Supply: 220V, 50 Hz.
Available in different sizes according to the capacity |
| Autoclave (Pressure Cooker Type) Non-Electric |
Fitted with: Pressure Regulating Device (Black Weight) , Safety Valve (Red Weight) , Pressure Gauge and inner stand.
Available in different sizes according to the capacity |
| Vertical Sterilizer |
Vertical Hi-Pressure Autoclave Wing Nut Type, Stainless Steel, Triple Wall Fitted Pressure Gauge Safety Valve, Water Inlet, Water Outlet, Gasket, Electric.
Power Supply: 220V, 50Hz.
Available in different sizes |
|
|
| Infant Radiant Warmer |
Quartz heater by a parabolic reflector.
Heater operated in servo and manual modes. Adjustable height of heater unit for different bed heights.
Swivelled heater unit to accommodate X-ray units.
Mounted on castor wheels with foot-operated brakes.
High- sensitivity thermistor probe with LED display for measuring Infant temperature.
Battery back-up
Control panel is ergonomically designed with soft-touch keys. |
| Baby Incubator |
Large front and Elbow operated ports
Externally operated Trendelenburg and Fowler positioning Up to 8° on both sides.
Easy-to-pull-out baby tray
Canopy with unique hinges
Self-supporting tube and lead apertures (made from autoclavable silicone)
Easy and safe to insert tubes and cords.
Microprocessor-based control panel with unique blower and heater
Easy to read and touch-operated |
| Phototherapy Lamp |
Focused Blue light at ~30 µW/cm²/nm and intensity up to 40 µW at a distance of 35 centimetres.
Required less frequent replacement of tubelights
Light focused on the baby bed only
Unwanted UV radiation is filtered and eliminated.
Heat Dissipation
Special vents provided on the light unit to divert heat and avoiding undesirable warming of the baby.
Compatibility with other equipment
Tiltable light unit for any bed or incubator and used in combination with a radiant warmer
Accessories:
Four blue and two white lamps.
Time totaller to monitor lamp usage. |
|
|
| Dental Unit |
Driven by whist low-voltage DC motor with air spring auxiliary balance
Integral Melamine Resin spittoon
Anti-return design for cooling water of bur
Interlock design between equipment and chair ensures safer operation
Super-low seat (41 cm) position design;
Increased Size of cushion and backrest for more comfortable seating
Combined foot control contains function of chair movement, flushing, gargling and handpiece operating operation light with 3 intensity and automatic off function
Operation from 220-240V, 50Hz power
Standard accessories: Operation light 1 set, DC X-film viewer 1 set, Three way syringe, 2 pieces (1 for cold and 1 for warm), Integral cuspidor 1 set, Constant temperature cup filler 1 set, Built-out injecting water purified system 1 set, Saliva ejector, 1 set, Dental stool, 1 piece |
| Dental Autoclave |
Benchtop Autoclave with different size of Chamber
Selectable temperatures either 121 /134 degrees C within the sterilising drum or container.
Timer to set the cycle time for sterilisation.
Operate from 220 - 240V, 50 Hz power.
Supplied with two (2) spare door seals.
Double door locked protection of manual and electric control
Particular sterilization of HIV, HBV and other virus. |
|
| Technical Specifications |
a) Oxygen generation capacity : 10 NM3/hr Medical Oxygen
(It will fill 10-cylinders in 6-hrs working)
b) Oxygen Purity : 93% ± 3%
c) Oxygen pressure from gas generator : 4.5 Kg/cm 2 g
d) Oxygen Cylinder filling pressure by booster compressor : 150 Kg/cm 2
|
| Cost Economics |
a) Cost of Oxygen generation is very less. This is very economical as compared to using liquid Oxygen Tanks.
b) Due to big cost difference, you will get enormous cost saving which will give you payback in around 1-year time.
c) The only running cost in this Oxygen plant is of Electrical power. |
| Salient Features |
a) Start-up time is only 5-minutes to start getting Oxygen.
b) utomatic pressure switch on storage tank Switches OFF & Switches ON Oxygen plant automatically as per your Oxygen consumption and Oxygen demand.
c) It is fully automatic unit, so no operator required.
d) Maintenance is negligible. Only running machine is Air compressor.
e) Life of Molecular Sieves is around 10-years. So for whole life time of Oxygen plant there is no cost of Molecular Sieves replacement
|
| Equipment Description |
The Gas generator has following main equipment :
a) One Screw type Air compressor.
b) Refrigeration Air dryer.
c) Oxygen Generator with molecular sieves.
d) PLC Control Panel.
e) Oxygen purity analyzer.
f) High Pressure Oxygen compressor with cylinders filling station.
g) Oxygen cylinder manifold.
|
| Air Compressor & Refrigeration Air Dyer |
a) Maintenance free Screw compressor is provided which supplies compressed air for Oxygen generation.
b) It has Air cooled after cooled after cooler so no cooling water required.
c) It has air receiver with automatic drain value.
d) A Refrigeration Air Dryer is provided to dry the compressed air.
|
| Oxygen Generator |
In Oxygen generator unit, Molecular Sieve adsorbs Nitrogen from Air, So oxygen comes out as product gas. In this progcess, ambient air is compressed, conditioned and filtered through synthetic minerals (zeolites) under pressure, when Nitrogen is selectively absorbed while oxygen pass through the zeolites and comes out as a product gas.
|
| Oxygen Booster Compressor |
a) This is of 10M 3/hr capacity for filling 10 cylinders in 6 hour working.
b) Oxygen is produced at 3-4 kg/cm2g pressure from oxygen generator and it will be boosted to 150 kg/cm2g pressure for automatic cylinder filling application. For this, we have included one oil free oxygen booster compressor in our supply. It is air cooled compressuor.
|
| Oxygen Analyzer |
We provide an ON-LINE digital oxygen analyzer with alarm system. It has adjustable set point and alarm system. It continuously shows O2 purity on control panel with digital indication. Its chemical sensor is of Citi-UK. Its range is up to 100% Oxygen.
|
| PLC Control Panel |
For automatic control of Oxygen generator a PLC control panel is included in our supply.
|
| Cylinder Manifold |
We supply a cylinder manifold of 10-cylinders (5 + 5) that are filled at high pressure from the oxygen booster compressor.
|
| Automation and Interlocks |
The Gas generator is fully automatic . Upon starting, Oxygen becomes available within 5-minutes . No continuous supervision is needed. You will get alarm on Control panel in case of following abnormalities:
a) Low Compressed air supply pressure.
b) High Oxygen pressure at booster discharge.
c) Low oxygen purity.
|
| Utilities Requirements |
a) 3-Phase electrical power : 24 KWH/hr (including cylinder filling compressor)
b) No cooling water required.
|
| Space Requirement |
Oxygen plant would be supplied duly fitted inside a 20 ft. size ISO Container as
shown in photograph above.
|
| Makes of Items |
Air Compressor : Atlas Copco
Molecular Sieves : CECA - France
Activated Alumina : UOP - USA
Temperature/Pressure Gauges : Radix / Wika
Oxygen Booster Compressor : Rix – USA/ Equivalent
Oxygen Rotameter : Flowstar
Pressure Switch : Danfoss
Oxygen Analyzer sensor : Citi- UK
|
| Scope of Supply |
• One Screw type Air compressor with Air Dryer.
• Multistage oil filters in air line.
• Air receiver with Instruments.
• Oxygen unit with valves, molecular sieves and Activated Alumina.
• Digital Oxygen Analyzer.
• Oxygen flowmeter.
• One Oxygen buffer vessel.
• Dust and Bacteria filter in outlet line.
• One Oxygen Booster compressor for cylinder filling.
• Oxygen cylinders manifold.
• Electrical Control Panel with PLC.
• All interconnected piping & cabling within Oxygen plant.
• Supervision of erection and commissioning at site.
• Assembly of Oxygen generator in 20-ft. size container.
|
| Exclusions |
Electrical power supply cable upto our control panel.
|
| Assembly, Installation & Commissioning |
The Gas generator would be supplied assembled on steel frame, ready for site installation. We shall depute Engineer to supervise its Installation and Commissioning at your site. He ill also give training in operation & maintenance.
|
|
|
| Technical Specifications |
a) Oxygen generation capacity : 40 NM3/hr Medical Oxygen
(It will fill 48-cylinders in 8-hrs working)
b) Oxygen Purity : 93% ± 3%
c) Oxygen pressure from gas generator : 4.5 Kg/cm 2 g
d) Oxygen Cylinder filling pressure by booster compressor : 150 Kg/cm 2
|
| Cost Economics |
a) Cost of Oxygen generation is very less. This is very economical as compared to using liquid Oxygen tanks.
b) Due to big cost difference, you will get enormous cost saving which will give you payback in around 1-year time.
c) The only running cost in this Oxygen plant is of Electrical power. |
| Salient Features |
a) Start-up time is only 5-minutes to start getting Oxygen.
b) Automatic pressure switch on storage tank Switches OFF & Switches ON Oxygen plant automatically as per your Oxygen consumption and Oxygen demand.
c) It is fully automatic unit, so no operator required.
d) Maintenance is negligible. Only running machine is Air compressor.
e) Life of Molecular Sieves is around 10-years. So for whole life time of Oxygen plant there is no cost of Molecular Sieves replacement
|
| Equipment Description |
The Gas generator has following main equipment :
a) One Screw type Air compressor.
b) Refrigeration Air dryer.
c) Oxygen Generator with molecular sieves.
d) PLC Control Panel.
e) Oxygen purity analyzer.
f) High Pressure Oxygen compressor with cylinders filling station.
g) Oxygen cylinder manifold for cylinder filling.
|
| Air Compressor & Refrigeration Air Dyer |
a) Maintenance free lubricated Screw compressor is provided which supplies compressed air for Oxygen generation. Filters are provided in Air delivery line.
b) It has Air cooled after cooled after cooler so no cooling water required.
c) It has air receiver with automatic drain value.
d) A Refrigeration Air Dryer is provided to dry the compressed air.
|
| Oxygen Generator |
In Oxygen generator unit, Molecular Sieve adsorbs Nitrogen from Air, so Oxygen comes out as product gas. In this process, ambient air is compressed, conditioned and filtered through synthetic minerals (zeolites) under pressure, when Nitrogen is selectively adsorbed while oxygen pass through the zeolites and comes out as a product gas.
|
| Oxygen Booster Compressor |
a) This is of 40M 3/hr capacity for filling 48 cylinders in 8 hour working.
b) Oxygen is produced at 4.5 kg/cm2g pressure from oxygen generator and it will be boosted to 150 kg/cm2g pressure for automatic cylinder filling application. For this, we have included one oil free oxygen booster compressor in our supply. It is air cooled compressor. This is Imported Compressor.
|
| Oxygen Analyzer |
We provide an ON-LINE digital oxygen analyzer with alarm system. It has adjustable set point and alarm system. It continuously shows O2 purity on control panel with digital indication. Its chemical sensor is of Citi-UK . Its range is up to 100% Oxygen.
|
| PLC Control Panel |
For automatic control of Oxygen generator a PLC control panel is included in our supply.
|
| Cylinder Manifold |
We supply a cylinder manifold of 12-cylinders (6 + 6) that are filled at high pressure from the oxygen booster compressor.
|
| Automation and Interlocks |
The Gas generator is fully automatic . Upon starting, Oxygen becomes available within 5-minutes . No continuous supervision is needed. You will get alarm on Control panel in case of following abnormalities:
a) Low Compressed air supply pressure.
b) High Oxygen pressure at booster discharge.
c) Low oxygen purity.
|
| Utilities Consumption |
a) 3-Phase electrical power : 105 KWH/hr (including cylinder filling compressor)
b) No cooling water required.
|
| Space Requirement |
This will be installed inside the building. Size of this Gas plant will be
Length : 6.5 M
Width : 4.8 M
Height : 2.5 M
|
| Makes of Items |
Air Compressor : Atlas Copco / Kaeser
Molecular Sieves : CECA - France
Activated Alumina : UOP - USA
Temperature/Pressure Gauges : Radix / Wika
Oxygen Booster Compressor : Rix – USA/ HAUG / Equivalent
Oxygen Rotameter : Flowstar
Pressure Switch : Danfoss
Oxygen Analyzer sensor : Citi- UK |
| Scope of Supply |
• One Screw type Air compressor with Air Dryer.
• Multistage oil filters in air line.
• Air receiver with Instruments.
• Oxygen unit with valves, molecular sieves and Activated Alumina.
• Digital Oxygen Analyzer.
• Oxygen flowmeter.
• One Oxygen buffer vessel.
• Dust and Bacteria filter in outlet line.
• One Oxygen Booster compressor for cylinder filling.
• Oxygen cylinders manifold.
• Electrical Control Panel with PLC.
• All interconnected piping & cabling within Oxygen plant.
• Supervision of erection and commissioning at site.
|
| Exclusions |
Electrical power supply cable upto our control panel.
|
| Assembly, Installation & Commissioning |
The Gas generator would be supplied assembled on steel frame, ready for site installation. We shall depute Engineer to supervise its Installation and Commissioning at your site. He will also give training in operation & maintenance.
|
|
| Multi-Function Electric Bed |
Backrest panel is made of x-ray transparent material
Bed head/foot boards and tuck-away side rails are made of high quality ABS engineering plastic
Head/foot boads are equipped with safety switch and roller bumper.
Embedded controls on both sides of safety side rails
Linear motor is quiet and noiseless.
Foot stepping control panel under the bed frame.
Standard Size: L2140 x W940 x H590 ~ 990mm |
| Five-Function Electric Bed |
Detachable head/foot boards are made of High quality ABS engineering plastic
125mm dia, castors with central locking system x 4
Motors of safe voltage
CPR device to instantly lower the backrest to a full flat from any degree of elevation
Aluminium alloy device makes the bending of the platform more smooth
Standard Size: L2160 x W940 x H480 ~730mm |
| Five-Function Electric ICU Bed |
Bed head/foot boards are made of high quality ABS engineering plastic and stainless steel
Aluminium alloy collapsible side rails are made of aluminium and carbon steel
Motors of safe voltage
125mm dia, Noiseless castors with central locking system
Standard Size: L2140 x W940 x H480 ~730mm
|
| Three-function Electric bed |
Bed frame welded by profile steel are stable and reliable.
Bed platform is treated with advanced electrostatic plastic-spray is anti-aging and anti- rust.
Head/foot boards and tuck-away side rails are made of High quality ABS engineering plastic
Build-in control panels on both side of headend side rails
Motors of safe voltage
Standard Size: L2160 x W940 x H520 ~770mm
|
| Two-function electric bed |
Aluminium alloy collapsible side rails are made of aluminium and carbon steel
Safety switch and provision for I.V. pole in each corner.
Bed frame welded by profile steel are stable and reliable.
Motors of safe voltage
Standard Size: L2140 x W940 x H500mm |
| Five-function Manual Bed |
Clutch driving theory for easy conversion of five positions.
Bed head/foot boards are made of high quality ABS engineering plastic
Bed frame welded by profile steel are stable and reliable
Aluminium alloy collapsible side rails are easy to operate.
125mm dia. Noiseless individual castors.
Standard Size: L2140 x W980 x H420 ~ 720mm |
| Three-function Manual bed |
Bed head/foot boards and tuck-away side rails are made of high quality ABS engineering plastic
ABS Tuck-away crank handle at bed-end
125mm dia. Noiseless castors with central locking system
Standard Size: L2140 x W940 x H530 ~720mm |
| Three-function Manual bed |
ABS head/foot boards are easily installed and removed
Bed frame welded by profile steel are stable and reliable.
Aluminium alloy siderails.
ABS Tuck-away crank handle at bed-end
Height adjustable by gas spring.
Standard Size: L2140 x W940 x H400 ~ 660mm |
| Movable full-fowler bed with ABS head/foot |
Bed frame welded by profile steel are durable and reliable
Tuck-away side rails are made of high quality ABS engineering plastic
Circulated central locking system
Standard Size: L2140 x W940 x H530mm |
| Fowler Bed |
Epoxy coated bed frame
Collapsible stainless steel side rails ,
Detachable ABS engineering plastic or Stainless Steel head/foot boards
Back rest:0°-70° ± 2° and Knee rest:0°-40° ± 2° are operated by crank
Anti-bumper in four corners , with I.V. rod locations
Four dia-125mm castors with brakes
knock-down construction.
Standard Size: L2120 x W980 x H500mm |
| Plain Bed |
Epoxy powder finish
Available in stainless steel & ABS head/foot board
Standard Size:2030x900x500mm
|
| Semi-Fowler Bed |
Epoxy powder finish
Backrest Adjustment with handle
Available in stainless steel & ABS head/foot board
Standard Size:2030x900x500mm |
| Child Bed |
Whole bed is made of stainless steel.
Back panel lifted by handle at the foot end.
Bed rails pulled upward and lied downward
Trucles braked without noise.
Standard Size: L1880 x W880 x H580mm |
| Luxuriours infant Bed |
100 mm dia. Polyurethane single-wheelcastors with brakes on opposite corner
Transparent plastic bassinet for clear visibility
Inclination angle adjustable by gas spring, 0-12°
Height adjustable by gas spring, 920-1070mm
With trendelenburg and reverse trendelenburg 12°
Standard Size: L870 x W530 x H920 ~1070mm |
|
|
| Delivery Bed |
Two section, one movable with castors with brakes
Complete with liquid bowl (SS) and leg holders
Standard Dimensions :
1st section : 135 x 112 x 86 cm
2nd section : 68 x 112 x 86 cm
Made of epoxy coated steel
Knockdown construction |
| Gynaecology Chair |
Whole bed is made of plastic spray treated with acid and static ,anti-aging ,anti-rust.
Back rest controlled by gas spring under the back panel
Adjustable angle of Back rest and foot panel is 0°-90°.
Adjustable height and opening angle of two legs
Standard Size: L1680 x W620 x H800mm
Available in stainless steel also |
| Obstetric Tables |
Multi-function obstetric bed
Bed surface includes back section, seat section and leg section.
Up-down movement of back section and forward & backward tilt of bed surface controlled by operating hand wheel
Back section: 600 x 800mm
Seat section: 600 x 400mm
Leg section: 540 x 500mm
Backrest adjustment Up > 75° down > 6°
Forward > 10° and backward tilt > 25° of bed surface
Standard Size: L1800 x W600 x H650/895mm |
|
|
| Stretcher on Trolley |
Stainless Steel tubing frame work of trolley mounted on 15 cm dia swivel castors.
Removable stretcher of SS sheet
Finish in Epoxy Powder Coated
Standard Size: 203 L x 56 W x 82 H cm. |
| Hydraulic Stretcher |
Epoxy powder coated mesh-wire platform with hydraulic pump system
Backrest adjusted by gas spring between 0-45°
Height adjustable between 460-850mm by hydraulic pump
Collapsible stainless steel side rails.
Four roller bumpers on corners of bed for protection
Height adjustable I.V pole on corners of both head and foot side
125mm dia. Castors with central locking system
Standard Size: L2100 x W690 x H460/850mm |
| Stainless Steel stretcher for emergency |
Stainless steel stretcher with adjustable height 680-900mm.
Standard Size: L1950 x W650 x H680/900mm
Composed by stretcher and chassis two parts
Self-locking type guard rail
High-quality leather surface intension high density sponge
Adjustable Backrest.
4 high-level static castors with brakes
Stainless steel IV pole, convenient and applied. |
| Foldable Stretcher |
Double fold stretcher with carry bag
Flexible handle
Folded by transverse and lengthwise
Made of high-strength aluminum alloy materials.
Folded Size: 110x18x11cm
Unfolded Size: 221x53x15cm
Four Fold stretcher with carry bag
Folded contracted by transverse and length wise
Made of high-strength aluminum alloy and leather materials.
Folded Size: 56x22x20cm
Unfolded Size: 215x55x14cm
|
| Ambulance Stretcher |
Adjusted with four different height;
Back and knee part adjusted by pneumatic spring
Stretcher with safety lock
Mechnical folding legs controlled by handles on both sides.
Made of high-strength aluminum alloy materials
200mm wide castor.
Unfolded Size (LxWxH) : 195x55x90cm
Folded Size (LxWxH) : 195x55x50cm |
|
|
| Foldable Wheelchair |
Standard wheelchair Chrome plated steel construction.
Pneumatic / Tubeless tyres with brakes on both wheels
Swing away foot plates
Robust seating, armrest and backrest. |
|
|
|
| Dressing Trolley |
Trolley is made of stainless steel
Trolley with double-deck, top having drawer, a stainless steel basin and bottom with a garbage can.
Trolley with four truckles with brake.
Available in ABS Material also
size: L660 x W440 x H925mm
Knock-down construction |
| Instrument Trolley |
Trolley is made of stainless steel
Trolley with double-deck and CR guard rails
Trolley is equipped with four truckles with brake.
Available in 3 shelves also.
Size: L750 x W470 x H925mm
|
| Medicine Trolley |
Two sides unit cassette and one side plate cassette for medicine.
Easy to removed.
Multi-bin container at the bottom
Multi structure enables different combinating upon requirement
Central locking system.
Size: L850 x W520 x H1045mm |
| Emergency Trolley |
Trolley is made of ABS
Drawers for different kinds of medicine
Plastic table top, size: 520 x 610mm
Waste bin and I.V. pole on the right side and large volume stuff basket at the bottom.
Polyurethane noiseless castors.
Size: L850 x W528 x H995mm |
| Mayo Trolley |
Height Adjustable 760 to 1270mm.
Stainless steel tray.
Size: 480 x 330mm.
Tubular ms frame work mounted on four swivel castors. 50mm dia.
Finish in epoxy powder coated.
Also available in complete stainless steel |
|
|
| Bed Side Screen |
Screen of the tube is made of stainless steel
Bottom of the tube are covered with rubber
With sightproof curtain
Available in 3 fold and 4 fold
Size: L2400 x H1680mm |
| I.V. Stand |
Stainless steel round tube and base
Height can be adjusted from 135cm to 250cm
Top with 4 chrome hooks, base with castors
Available in 2 hooks also. |
| Foot step |
One-step footstool
Epoxy coated steel frame, with anti-sliding rubber cover
Foot with anti-noise rubber sheath
Size: L420 x W290 x H210mm
Two-step footstool
Stainless steel frame, cover with anti-sliding rubber
Foot with anti-noise rubber sheath
Size: L580 x W420 x H200/400 mm |
| Medicine Cabinet |
2-door appliance cupboard with stainless steel base
Size: L960 x W400 x H1750mm |
| Bedside Lockers |
ABS bedside cabinet
With one drawer and one concealed board for cup and article
Size: L475 x W470 x H755mm
Bedside cabinet stainless steel top & Base
With one drawer and one concealed board for cup and article for using.
Size: L490 x W400 x H755mm |
| Overbed Tables |
Height Adjustable
Size: L770 x W380 x H750 ~ 1010mm |
| Instrument Cabinet |
With 3 shelves, 2 drawers and 1 cupboards
Size: L900 x W400 x H1750mm |
| Dust Bin - Foot Operated |
stainless steel outer construction , inner with plastic basket
Foot pedal to open
12 litre |
| Bowl Stands |
SS Bowl single with Height 84 cm.
SS tubular frame work mounted on plastic base fitted with five 5 cm DIA swiveling castors.
Finish in epoxy powder coated
SS Bowl double with Height 84 cm.
SS tubular frame work mounted on plastic base fitted with five 5 cm DIA swiveling castors.
Finish in epoxy powder coated |
| Baby Cradle |
M.S. tabular pipe.
Stand fitted with PVC stumps
Wire mesh hanging cradle Pretreated and Epoxy Powder coated |
| Attendant Bed |
Size: L1900xW530xH240/400mm
Epoxy coated steel frame , sponge top with artificial leather cover
Base with castors
Also used as chair
|
|
|
| Examination Table |
Size: L1900 x W620 x H700mm
Stainless steel semi-fowler examination bed
Adjustable Backrest : By hand lever/rachet |
| Examination Couch |
Mild steel tubing, adjustable head and leg section, top in upholstered and covered with washable plastic material.
Three drawers and three cabinets with separate door at bottom.
Finish in epoxy powder coated.
Size : 183 (L) x 51 (W) x 81 (H) cm, |
| Revolving Stool |
Stainless steel seat and supporting pole,
Five pointed star ABS plastic base with five swivel castors
Seat diameter is 29cm
The height can be adjust by gas spring. |
| Surgeon Stool |
-Robust Surgeon's stool with adjustable height
-Padded seat covered with heavy-duty washable vinyl
-5 legs
-Castors to enable movement with brakes on at least 2 wheels. |
|
|
| Waste Bin |
Capacity: 120 Ltrs.
With Lid |
|
|
| Dental Unit |
Driven by whist low-voltage DC motor with air spring auxiliary balance
Integral Melamine Resin spittoon
Anti-return design for cooling water of bur
Interlock design between equipment and chair ensures safer operation
Super-low seat (41 cm) position design;
Increased Size of cushion and backrest for more comfortable seating
Combined foot control contains function of chair movement, flushing, gargling and handpiece operating operation light with 3 intensity and automatic off function
Operation from 220-240V, 50Hz power
Standard accessories: Operation light 1 set, DC X-film viewer 1 set, Three way syringe, 2 pieces (1 for cold and 1 for warm), Integral cuspidor 1 set, Constant temperature cup filler 1 set, Built-out injecting water purified system 1 set, Saliva ejector, 1 set, Dental stool, 1 piece |
| Dental Autoclave |
Benchtop Autoclave with different size of Chamber
Selectable temperatures either 121 /134 degrees C within the sterilising drum or container.
Timer to set the cycle time for sterilisation.
Operate from 220 - 240V, 50 Hz power.
Supplied with two (2) spare door seals.
Double door locked protection of manual and electric control
Particular sterilization of HIV, HBV and other virus. |
|
| Syringes with / Without Needle |
Disposable & Auto-Destructive
Sterile
Available in 1ml, 2ml, 3ml, 5ml, 10ml, 20ml & 50ml |
|
|
|
| Disposable Needles |
Disposable & Auto-Destructive
Sterile
Available in 16G, 18G, 20G, 21G, 22G, 23G, 24G, 25G, 26G, 27G, 28G, 29G & 30G with different lengths |
| Butterfly Needles |
Disposable
Sterile
Available in 21G, 23G & 25G etc. |
| Blood Collection Needles |
Disposable
Sterile
Available in 18G, 20G, 21G, 22G & 23G |
| Blood Lancets |
Disposable
Sterile
Available in Standard Size |
| Holders for Blood Collection Needles |
Standard Size |
|
|
|
| IV Cannula |
Sterile, Disposable
Super sharp Needle with two cutting edges.
With Injection port and non return valve for extra medication.
Available in Sizes 16G, 18G, 20G, 22G & 24G |
|
|
|
| Foley Balloon Catheter |
2-way / 3-way , Disposable, Sterile
Made from Natural Latex Rubber.
Ballon capacity: 3cc, 15cc & 30 - 50cc. 5-15ml, Available in 8 & 10 FG in 3cc, 12 & 14 FG in 15cc & 16 to 26 FG in 30-50cc
|
| Nelaton Catheter |
Sterile
Distal end is coned with two lateral eyes for maximum drainage.
Non toxic, non irritant, Medical grade PVC Compound.
Available in 6 to 20 FG |
| Urinary Catheter |
Used for urine drainage.
Sterile.
Distal end is coned with two lateral eyes for maximum drainage.
Non toxic, non irritant, Medical grade PVC Compound.
Avilable in 90 - 14FG & 91 - 14FG
|
| Rectal Catheter |
Sterile.
Used for giving enema solution into rectum.
Distal end is open with one lateral eye for efficient drainage.
Non-toxic, non irritant medical grade PVC compound.
Available in 12 to 26FG |
| Endotracheal Tube |
Available in Plain & cuffed.
Sterile.
Proximal end is fitted with standard 15mm connecter.
Tip for both Nasal and Oral intubation.
Non toxic, non irritant, Medical grade PVC Compound.
Available in 2.5mm to 10mm |
| Stomach Tube |
Sterile.
Tube is marked at 45, 55, 65 and 75cm from the distal end for accurate placement into the abdomen.
Non toxic, medical grade PVC compound.
Available in 6 to 20 FG |
| Feeding Tube |
Sterile.
Distal end is smooth coned shape for non traumatic intubation.
Two lateral eyes for efficient drainage.
Tube is marked at 20 cm from the distal end for accurate placement into the abdomen.
Non toxic, medical grade PVC compound.
Availiable in 5 to 10 FG |
| Suction Catheter |
Sterile.
Vacuum control facility in Finger Tip and Thumb Control models.
Non toxic, non irritant medical grade PVC Compound.
Available in 5 to 18 FG |
|
|
|
| Crepe Bandage |
Better elasticity, controlled, uniform & smooth pressure.
Effectively used for sprains, painful joints, after skin grafts and as prophylaxes in athletics.
Thick Fabric.
Woven Fast Edges.
Available in Sizes: 6cm x 4m, 8cm x 4m & 10cm x 4m
|
| Rolled Bandage |
Made of 100% cotton fabric bleached to good white.
Hydrogen peroxide for bleaching the fabric
Availiable Size: wide 2.5cms to 20cms and length 2 to 10 mtrs. |
| Plaster of Paris Bandage |
Low Powder Loss.
Short immersion time.
Fast setting time.
Extra Strong.
Leno weave fabric coated with POP mass
Available Sizes: 7.5cm x 2.7m, 10cm x 2.7m, 15cm x 2.7m & 20cm x 2.7m |
| Elastic Adhesive Bandage |
Good aesthetic appeal due to woven fast edges.
Thick Fabric.
Allows Free muscle & Joint Movement.
Porous adhesive to allow skin breathing.
Contains 20% Zinc Oxide acts as mild antiseptic, astringent & anti- inflammatory
Available in Sizes: 7.5cm x 4.5m |
| Compressed Gauze |
Sterile / Non-Sterile
Made of 100% cotton yarn woven gauze, hydrophilic
Also available with heat sealed / interwoven X-ray opaque thread
Available in 7.5 x 7.5cm & 10 x 10 cm, 8 ply, 12 ply & 16 ply |
| Absorbent Gauze |
Made of 100% cotton fabric, hydrophillic
Non-sterile
Also available with heat sealed / interwoven X-ray opaque filament and duly Gamma ray sterilized if required
Available Sizes: 45cm x 16 mtrs to 90cm x 100 mtrs. |
| Paraffin Gauze |
Non-adherent, non allergenic, gamma sterile Dressing
Enhances healing in burns, skin grafts skin loss and lacerated wounds.
Sterile in aluminium foil or in aluminum tin Container
Size: 10 cm x 10cm |
| Adhesive Tape |
Zinc Oxide Self Adhesive Plaster
Non-allergenic
Non-sterile
Available in sizes: 1.25cm x 9m, 2.5cm x 9m, 5.0cm x 9m, 7.5cm x 9m & 10cm x 9m |
| Cotton wool |
Non-sterile
Available in 100gm & 500gm |
|
|
| Blood Collection Vacutainer Tubes |
Plain, EDTA, Fluoride, Serum, Heparin, SST, PST, Citrate, and other tubes
Available in 2.4ml, 2.7ml, 3.0ml, 3.5ml, 4ml & 5ml |
|
|
|
| Surgical Gloves |
Sterile / Non-Sterile
Disposable
Available sizes : 6, 6.5, 7, 7.5, 8, 8.5 |
| Examination Gloves, Latex |
Non-sterile
Disposable
Available sizes : small, medium & large |
| Examination Gloves, Plastic |
Non-sterile
Available in all sizes |
| Examination Gloves, Vinyl |
Sizes : small, medium & large |
|
|
|
| Synthetic Absorbable Suture |
Braided and coated synthetic absorbable surgical suture made from co-polymer of 90% Glycolide and 10% L-lactide
Available in undyed and Violet Color
Minimal tissue reaction
Available with needled and pre-cut sterile sutures
Available Sizes: 0, 1, 2, 2/0, 3/0, 4/0, 5/0 & 6/0 |
| Catgut Sutures |
Good Tensile strength
Easy to knot, even in depth
Twisted multifilament with virtually monofilament finish.
Available in Plain and Chromic
Moderate, lower tissue reaction
Available Sizes in Chromic: 1, 1/0, 2, 2/0, 3/0 & 4/0 (with needle)
Available Sizes in Plain: 1/0, 2/0, 3/0 & 4/0 (without needle) |
| Non-Absorbable Suture |
Monofilament suture with excellent tensile strength and reasonable elasticity
Synthetic, polypropylene Suture
Minimal tissue reaction
Available with loop, needled and pre-cut sterile suture
Available sizes: 1, 1/0, 2/0, 3/0, 4/0, 5/0 & 6/0 |
| Silk Braided Sutures |
Entwined thread from silk worm larva.
Treated with silicone or wax to give strength and smooth surface
Moderate tissue reaction
Available with needled and pre-cut sterile sutures
Not used in biliary and urinary tract surgery.
Available in Sizes: 1, 1/0, 2, 2/0, 3/0, 4/0 & 5/0 (With needle) |
| Polyamide Sutures |
Good Tensile strength
Easy removable with no tissue adherence
Polyamide 6 suture (Nylon)
Available with loop, needled and pre-cut sterile suture
Not recommended for attachment of artifical prostheses in Cardiovascular Surgery
Available Sizes: 1, 1/0, 2/0, 3/0, 4/0, 5/0, 6/0 & 10/0 (With needle) |
| Mesh |
Available sizes: 2 x 2, 3x6, 6x6, 12x12 inches.
Available in PM and PS types.
PM type mesh is thinner, smoother and more flexible
PS type mesh is strong, thicker and normal flexibility.
Ultrosonically cleand and packed in pouches with EO sterile.
All edges are laser cut to avoid post surgical inconvenience.
Very high bursting strength, elasticity and tested for Bio-compatiability after implantation. |
|
|
| Scalp Vein Set |
Designed to provide rapid venous access
Siliconized and thin walled high quality needle for atraumatic insertion.
Butterfly wings facilitate for better and easy fixation.
Super smooth kink resistant tube.
Color coded butterfly wings by size for easy identification.
Sterile / Disposable / Individual Blister Packed.
Available in Sizes: 18G, 19G, 20G, 21G, 22G, 23G, 24G & 25G |
|
|
|
| Urine Bags |
For child and adult
Disposable
Available in 1L & 2L with tap and valve |
|
|
|
| Infusion Set |
Clear, Transparent & Flexible Built in Air Vent Chamber.
Super Smooth Kink Resistant Tube.
Very Efficient roller Controller For Accurate Flow rate.
Self sealing Latex / Latex Free bulb for easy flushing.
Luer Locking for Secure Connection.
Availabe in different needle size
Sterile / Disposable / Individual Packed. |
|
|
|
| Oxygen Mask |
Made of clear, non-toxic PVC.
Adjustable elastic strap and integrated nose clip
With long star lumen tube for continuous flow of Oxygen.
Tube has funnel shaped connector at the proximal end to facilitate simple & safe connection with the oxygen Tube.
Sterile / Disposable / Individual Packed |
| N95 Mask |
Reduce wearer exposure to airborne particles upto 0.1 to > 10.0 microns
Fluid resistant to provide >99% BFE against microorganisms
Size: Small, medium & Large |
|
|
|
| Guedel Airways |
Sterile.
Maintain an unobstructed oro-pharyngeal airway.
A traumatic soft-rounded edges.
Available in 000 to 5 |
|
|
|
| Endotracheal Connectors |
Disposable
Sterile / Disposable / Individual Packed. |
|
|
|
| Umbilical Cord Clamp |
Double purpose security lock against accidental re-opening.
Finger grip ensure safe and convenient handling
With grooves to prevent the slipping of Umbilical Cord
Sterile / Disposable / Individual Packed. |
|
|
|
| Mucus Extractor |
Clear transparent container
Suitable for obtaining mucus specimen for micro biological examination.
Provided Spare closure cap to seal the container for safe transportation of specimen
Provided Low friction surface catheter with open end silk smooth round tip for trauma free insertion.
Capacity 20 to 25ml.
Sterile / Disposable / Individual Packed. |
|
|
| Blood Bag |
Siliconised ultra thin walled, 16G, sharp needle assures smooth and atraumatic venipuncture
Soft, frosted and flexible kink resistant tubing at intervals of 10 cm
Medical grade PVC sheet
Single, Double, Triple and Quadruple blood bag systems are provided with snap tip and connector tube
Convenient hanger slits and holes
Capacity: 100ml, 250ml, 300ml, 350ml, 450ml & 500ml |
|
|
| Disposable Apron |
Available in Polypropylene
Size: 90cm x 120cm
Available in different thickness |
| Apron, Reusable |
Available in PVC
Size: 90cm x 120cm
Thickness: 0.15 - 0.20 mm |
| Plastic Sheeting |
Size: 90cm x 180cm
Available in PVC and Polypropylene |
| Surgeon Gown |
Available Sizes: Small, Medium & Large |
| Patient Gown |
Made of cotton
Available Sizes: Small, Medium & Large |
| Doctor Coat |
Made of Cotton
Avialable in Half and Long Sleeve |
| Disposable Caps |
Non-woven.
Elastic strip stitched for proper grip on the forehead. |
| Disposable Shoes |
Non-woven.
Elastic strip stitched for proper grip. |
| Surgical / Operating Masks |
Non-woven.
Available in 2 / 3 layers.
Available in Tie bands and Elastic Strap for proper fixing. |
| Bed sheets |
Made of cotton
Available in all sizes |
| Pillow with cover |
Standard Size |
| Towel Huck |
Made of cotton
Available in different sizes |
|
| Sphygmomanometer, Aneroid |
Dial type
Calibration 0 to 260 mmHg.
Complete with hook, velcro cuff (adult and child size), bulb and valve, with case |
| Sphygmomanometer, Mercury |
Range from 0 to 300 mmHg.
Rubber bulb with chromium plated release valve.
Cuff with two tube rubber bladder.
Mercury lock.
Large storage compartment for cuff & rubber bulb.
Precision glass column internal diameter 4.2mm +/- 0.2mm. |
| Sphygmomanometer, on Stand |
360mm Hg switch
5-wheel with brake
Adjustable high stand (With range of 95-135cm)
Nylon cuff with D-ring, 2-tube Adult Latex Bulb, Standard Latex Bulb, Air-release Valve with Spring, Standard End Valve, PVC coil tubing |
| Digital Sphygmomanometer |
Digital Display
Inflation: Fuzzy logic controlled by electric pump
Deflation: Automatic pressure release valve
Memory for 30 sets of readings with date and time
Displays average of last three readings taken within last 10 minutes
Long battery life measured up to 1500 times (with new alkaline batteries) |
|
|
|
| Stethoscope |
Binaural, Litman Type
With plastic ear tips.
Tubing double stem chest piece.
Combined bell and diaphragm sprague bowless type.
Available in Stainless steel, Chrome plated and Brass. |
|
|
|
| Clinical Thermometer |
Oral Thermometer in Fahrenheit and Celsius scale
with plastic case. |
| Rectal Thermometer |
Rectal Thermometer in Fahrenheit and Celsius scale
with plastic case.
|
| Digital Thermometer |
Battery powered for oral / rectal application
Calibrated in degrees Celsius.
|
|
|
|
| Fetoscope |
Pinard type
Available in Aluminium and Plastic |
|
|
|
| Glucometer |
Kit includes:
Blood Glucose meter
Lancing Device
10 sterile lancet
Case
High - Low Alarm |
|
|
|
| Ophthalmoscope |
Ophthalmoscope set composed of diagnostic head threaded on a handle.
Halogen bulb, 2.5 V provides bright white light.
Handle with on/off switch.
Works with 2-AA batteries. |
|
|
|
| Otoscope |
Otoscope set composed of Diagnostic head on a handle.
Wide angle of viewing lens, magnification 3x.
Reusable plastic specula attached to front part.
Halogen bulb, 2.5V provides bright white light.
Handle with on/off switch.
Works with 2-AA battreies. |
|
|
|
| Proctoscope |
A removable hinged window which can be swung open.
A connector for a dilating bulb.
A swivel Loupe 1.8x. A metal end sleeve.
Fibres are located between the double wall of the stainless steel tube and allow an unobstructed view. |
|
|
|
| Bathroom Scale, Adult |
Available in Dial Type and Digital
Capacity: 120Kg, 150kg
Graduation: 100gm
Available in Round and Square shape |
| Infant Scale, Pan Type |
Benchtop mounted, mechanical
With dial Indicator.
Pan available in Epoxy Powder coated and Stainless Steel
Available in 10kg & 20 Kg with 0.1kg increments. |
| Weighing Scale, Salter Type |
Dial type Hanging Scale with trousers to hold baby.
Upto 25 kg x 100 gms
|
| Hanging Scale |
Hanging Spring Scale with trousers to hold baby.
Upto 5 kg x 100 gms
(Available in ABS plastic material) |
| Weighing scale and height scale |
Scale to Measure Height and weight.
Wall mounted or free standing height scale with adjustable head board.
Calibrated in cm & mm.
Height upto 160 cm to 210cm |
|
|
| Height measuring Board |
Portable baby/child length-height measuring system, packed 2 systems per box.
Set of 2 portable baby/child length-height measuring systems.
Measures standing height (children) as well as laying length (babies);
designed for heavy duty use in demanding circumstances;
compact and portable when disassembled;
Fixations of the shoulder straps on the board do not hamper horizontal set-up from laying flat.
Measuring tape on one side of the board |
 |
Scissors |
Forceps |
Retractors |
| Needle Holders |
Urology Instruments |
General Surgery |
| Dental Instruments |
Gynaecology Instruments |
Obstetrics Instruments |
| Sterilization Instruments |
Scalpels and Knives |
Orthopaedic |
| Cataract |
Ophthalmic |
Oral Instruments |
| Laryngoscope Set |
|
|
|
| Bed Pan |
Stainless steel,
Available in Male and Female
|
|
|
|
| Bowl |
Stainless Steel
Available in difference Sizes: 100ml, 180ml, 600ml, 1 ltr., 6 ltrs. Etc. |
|
|
|
| Catheter tray |
with/without tray
Stainless Steel
Availabe in Sizes: 8" x 3" to 16" x 4" |
|
|
|
| Cotton Container |
Stainless Steel |
|
|
|
| Dressing jar |
Stainless Steel, capacity: 1 & 2 ltrs. (with cover) |
|
|
|
| Dressing Drum |
Stainless Steel, Jointed / Seamless, Available in sizes: 6" x 6", 9" x 5", 9" x 9", 11" x 5", 11" x 9", 12" x 10", 14" x 10', 15" x 12" |
|
|
|
| Enema can with tubing |
Stainless Steel, 1.5 ltrs. |
|
|
|
| Forceps jar |
Stainless Steel, Available in Size: 2" x 6", 7" & 8" |
|
|
|
| Gallipot |
Stainless Steel, Available in Size: 4 & 6 OZ (with cover) |
|
|
|
| Instrument tray |
Stainless Steel, Available in Size: 8" x 6" to 18" x 12" (with/without cover) |
|
|
|
| Kidney tray |
Stainless Steel, Availabe in Size: 6" to 12" |
|
|
|
| Ointment jars |
Stainless Steel, Available in different sizes |
|
|
|
| Sponge Bowl |
Stainless Steel, Available in Small, Medium & large |
|
|
|
| Sputum container with cap |
Stainless Steel |
|
|
|
| Urinal Male |
Stainless Steel |
|
|
|
| Urinal Female |
Stainless Steel |
 |
Emergency Health Kit. |
First Aid Kit |
Physician Kit |
| MCH-A Kit |
MCH-B Kit |
Clean Delivery Kit |
| Midwifery Kit |
IUD Insertion Kit |
TBA Kit |
| Resuscitation Kit |
Auxillary Midwifery Kit |
PHS Kit |
| HA Kit |
Fistula Repair Kit (instuments) |
|
|
| |
| With an extensive product range on offer, we are confident of fulfilling your product needs. For detailed product catalogues and specific product solutions, contact our team at esco@escoanand.com. |
|
